How effective is floor soundproofing?

Floor soundproofing will reduce impact noise, airborne noise or both. All of our acoustic floor solutions are designed to exceed the UK Part E Building Regulations for the passage of sound. (43dB or higher for airborne noise and 64dB or lower for impact noise). Different systems offer different levels of noise reduction depending on the level of noise needed to be blocked and the current construction of the floor. No soundproofing will offer 100% reduction, however installing soundproofing will dramatically reduce noisy neighbour noise. *dB results will vary depending on several factors. Please see our dB blog on why dB results may vary

Does floor soundproofing work both ways?

Floor soundproofing will block impact noise (footsteps) travelling from the room above to the room below. Floor soundproofing can also block airborne noise travelling from below to the room above or from the room above to the room below.

Do I need to soundproof the whole floor?

The short answer is YES as soundproofing is like waterproofing and is only as good as the weakest point. (As sound can travel through very small gaps). If you were to soundproof just part of the floor you would be wasting your money.

How thick is floor Soundproofing?

Floor soundproofing varies in thickness from 5mm to 28mm depending on the type and level of soundproofing required. However, our best-selling SoundDeck is just 37mm thick and performs exceptionally well against both airborne noise and impact noise.

Do you offer an installation service?

Please see our dedicated installation page for more details on different installation options.

Once installed, can I put any type of flooring down?

Yes, however, the best final floor finish for soundproofing is carpet. Our SoundDeck is unique in that no further hardboard layer is needed. Thin hard floors such as laminate and vinyl can also be fitted on top of soundproofing, but some systems may need a 6mm hardboard first to provide a flat stable base. Our Reverso SoundMat is unique in that in the majority of cases no further hardboard layer is needed. Engineered wood floors can also be fitted on top of soundproofing providing it is 18mm or thicker. Bathroom, and kitchen tiles will normally need a flat stable base on top of the soundproofing, depending on which floor soundproofing system has been selected. For specialist flooring (including certain LVT and Vinyl) a self levelling screed or overboard may be needed to meet the manufactures guidance. Please speak to the flooring manufacturer to check. Solid and hard floor finishes will reduce the amount of impact noise reduction achieved by the base layer of soundproofing by up to 5dB.

SoundDeck 32

ProSound SoundDeck 32

Acoustic construction floor boards for new builds, conversions and commercial spaces

Buy Now

ProSound SoundDeck 32

Acoustic construction floor boards for new builds, conversions and commercial spaces

Buy Now

Direct To Joist

Designed to be installed directly onto joists

72dB

Impact noise performance

(See performance tabs below)

Timber Floors

Ideal for timber floor refurbishment projects

32mm Thick

Can be used as a replacement for existing floorboards

DIY Installation

Tongue and groove edge for fast and easy installation

No Over Boarding

Suitable for all floor finishes. Including laminates, wood, vinyl and tiles

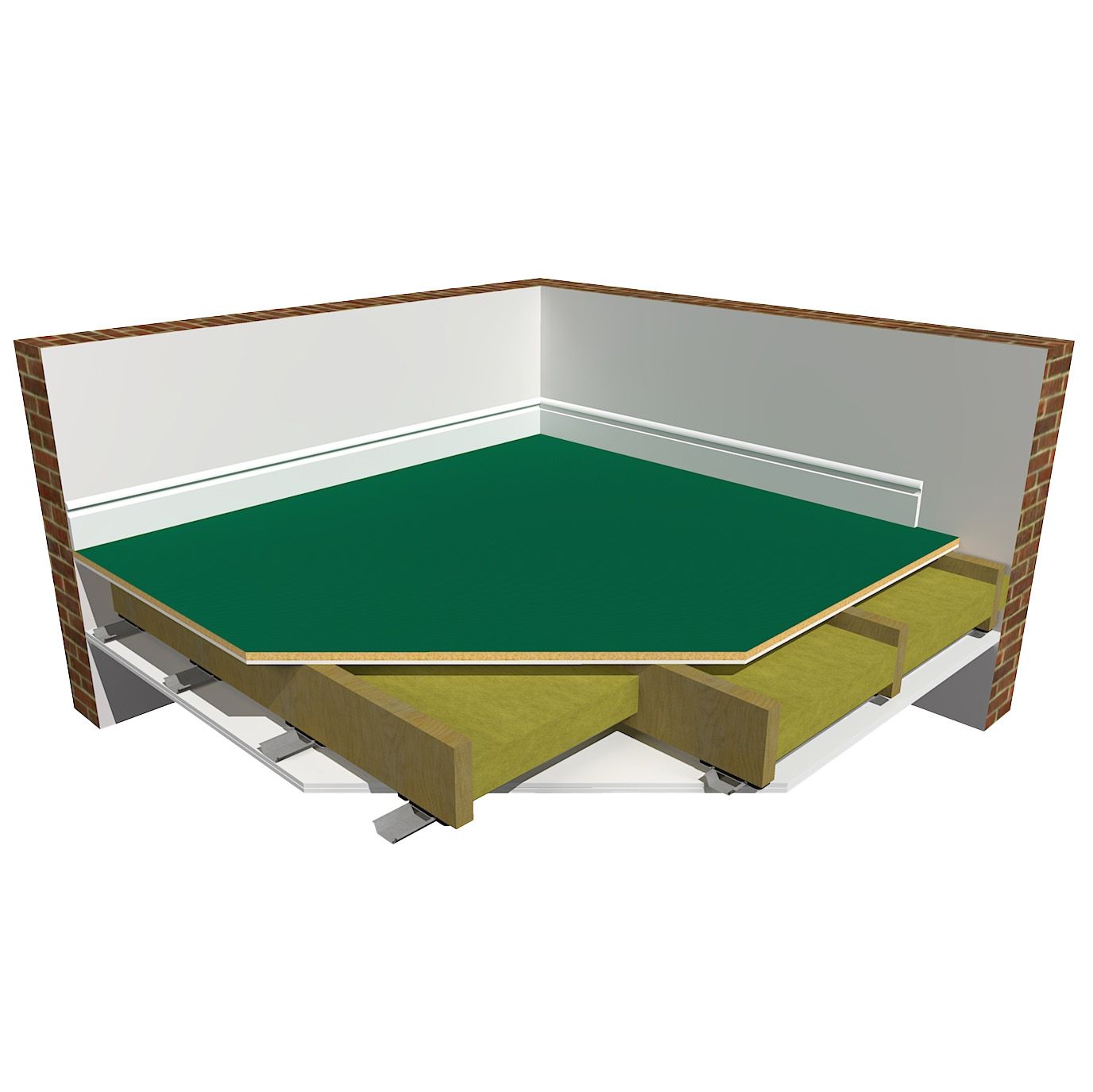

ProSound™

SoundDeck 32

The SoundDeck 32 is a cost effective solution in reducing impact and airborne noise on timber floor structures. The SoundDeck 32 is commonly used directly on floor joists as an upgraded floorboard replacement. For added performance is can also be used as an overlay board floating on top of existing timber floorboards.

SoundDeck 32 provides a strong, level and stable base for hard floor finishes which removes the need for a stabilising layer, helping to reduce installation time and costs.

Particularly suited to passing Part E Building Regulations and deigned to be installed directly onto joists with a resilient acoustic ceiling system like the ReductoClip Ceiling Solution below.

Download Brochure

Why Use The SoundDeck 32 System?

Good performance - improve the soundproofing capabilities of your floor as part of a full system

Straightforward DIY installation - saving you time and money, without the need of extra labour costs

Cost effective - a cheaper alternative to other floor soundproofing solutions

Fast delivery lead times (3-5 working days) - no need to prolong the wait for a solution to your noise issue. We're here to make it happen swiftly and efficiently

Industry leading technical support - soundproof with confidence. Whatever the noise issue, whatever the question, we're here to help

Simple, DIY Installation

The SoundDeck 32 is an excellent solution for direct to joist installation or as an overlay board. Its tongue and groove edge profile ensures a hassle-free installation process.

A competent DIYer can install the system themselves saving on installation costs. For non DIYers, a local tradesperson such as a builder or joiner will have the necessary skill to install the system for you following our detailed installation guide.

Our team of highly trained and experienced soundproofing professionals are also on hand to offer technical support and answer any installation questions.

Installation Guide

Simple

DIY Installation

Technical Information

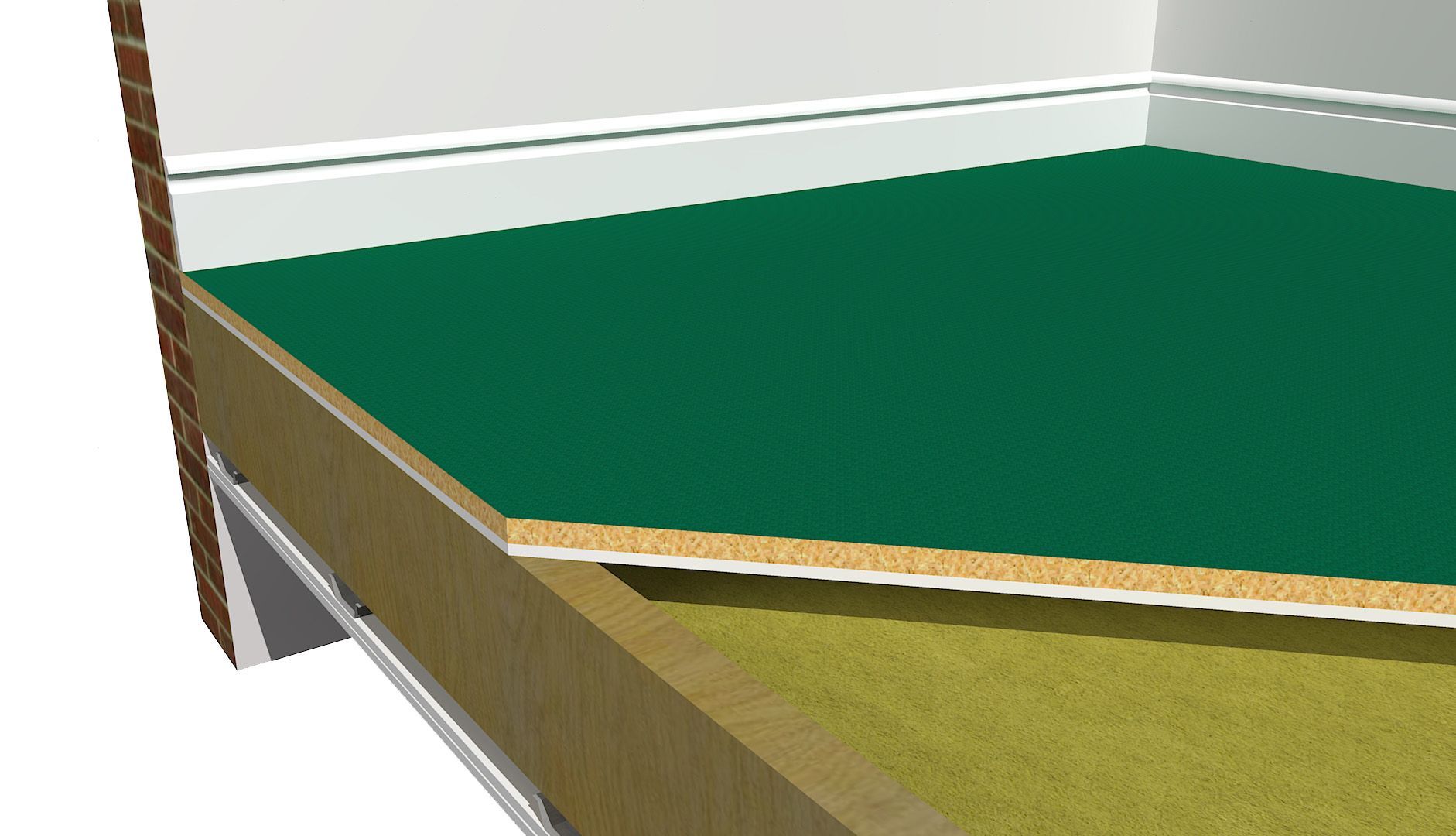

Two layers of sound reduction engineering

1. 22mm P5 Moisture Resistant, PEFC & FSC T&G Chipboard - with a heat-treated green top surface finish provides a solid stable base for all final floor finishes

2. 10mm PET 100% Twice Recycled Mat - adds resilience to the floor to help reduce impact vibration

Download Brochure

Real World Site Test

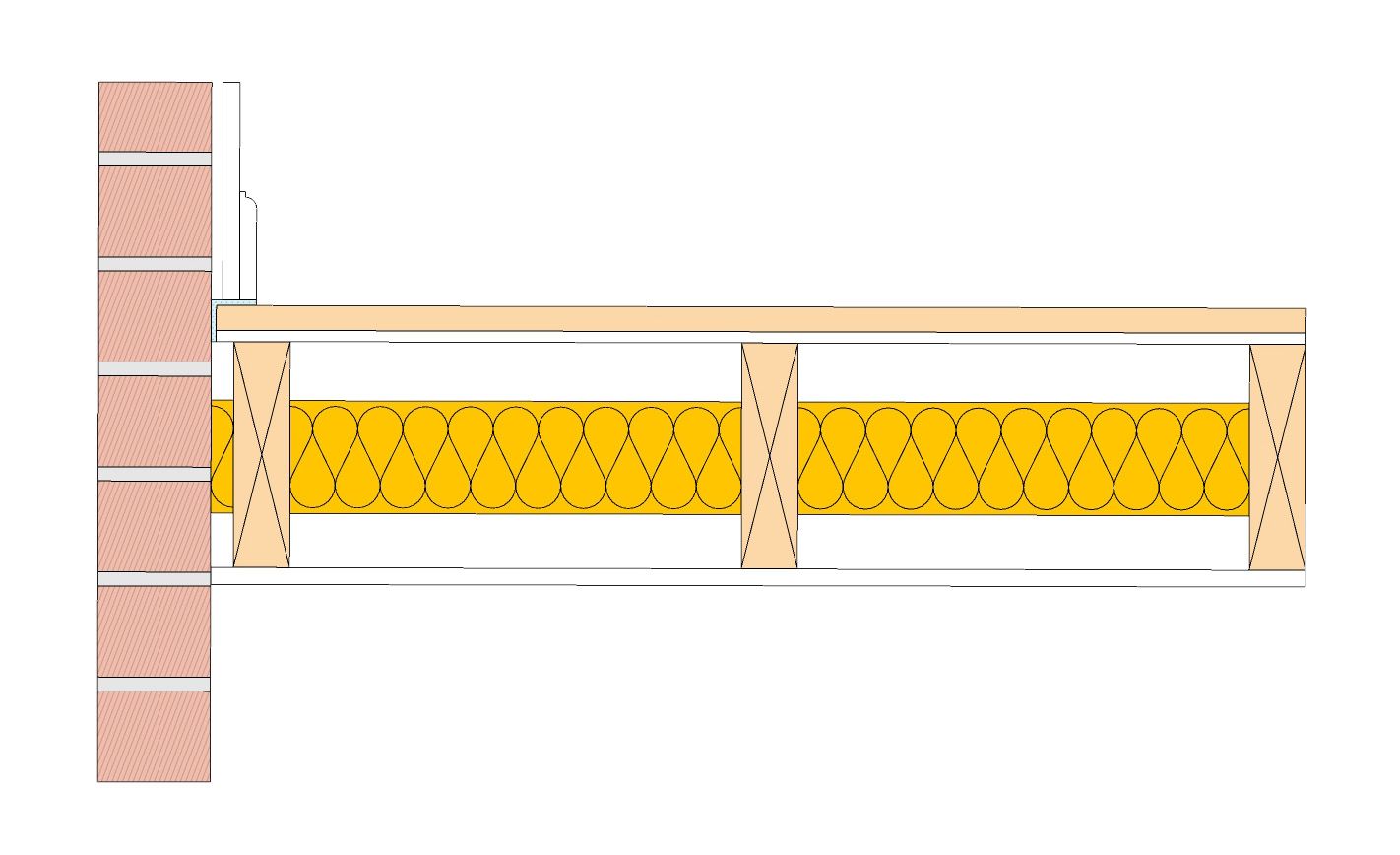

Tested on timber sub floor with one layer of plasterboard directly fixed to underside of joists.

Airborne Performance

(higher the figure the better)

45dB (DnT,w)

35dB (DnT,w+Ctr) Includes correction for low frequency performance.

Airborne sound reduction of untreated timber floor:

38dB (DnT,w) / 25dB (DnT,w+Ctr)

Airborne improvement with treatment:

7dB (DnT,w) / 10dB (DnT,w+Ctr)

Impact Performance

(Lower the figure the better)

72dB (LnT,w)

Impact sound reduction of untreated timber floor:

82dB (LnT,w)

Impact improvement with treatment:

10dB (LnT,w)

See All Performance Data

SoundDeck 32 is a dual purpose product that can be used in two different ways:

Overlaid on an existing floor:

Used as an overlay board on an existing solid sub floor when floor height is not restricted.

Direct to floor joists:

To minimise floor height build up

Specifications

Total thickness of system: 32mm
Size: 2400mm x 600mm x 32mm (1.44m²)
Weight: 24.2kg per board (16.8kg per m²)
Water: P5 water resistant

Thermal Conductivity:

22mm P5 Chipboard: 0.15 W/mK
10mm PET: 0.16 W/mK

Thermal Resistance:

22mm P5 Chipboard: 0.15 m² K/W
10mm PET: 0.06 m² K/W

Fire:

EN13501-1: D-s2, d0

Download Brochure

Full System Components:

Perimeter Flanking Strip (25m x 100mm x 5mm)

Acoustic Sealant - 900ml

Jumbo Sealant Applicator Gun for 900ml tubes

Acoustic Mineral Wool

Joint Adhesive Glue - 1litre

Buy Now

Ready To Take The Next Step?

If you know what you want and are ready to proceed

Buy Now

If you need help calculating material quantities

Need some guidance? Speak to our friendly team of experts

We don’t expect you to become an overnight soundproofing expert, that’s what we’re here for.

Floor Soundproofing FAQs

How effective is floor soundproofing?

Floor soundproofing will reduce impact noise, airborne noise or both. All of our acoustic floor solutions are designed to exceed the UK Part E Building Regulations for the passage of sound. (43dB or higher for airborne noise and 64dB or lower for impact noise).
Different systems offer different levels of noise reduction depending on the level of noise needed to be blocked and the current construction of the floor.
No soundproofing will offer 100% reduction, however installing soundproofing will dramatically reduce noisy neighbour noise.
*dB results will vary depending on several factors.
Please see our dB blog on why dB results may vary
Does floor soundproofing work both ways?

Floor soundproofing will block impact noise (footsteps) travelling from the room above to the room below.
Floor soundproofing can also block airborne noise travelling from below to the room above or from the room above to the room below.
Do I need to soundproof the whole floor?

The short answer is YES as soundproofing is like waterproofing and is only as good as the weakest point. (As sound can travel through very small gaps).
If you were to soundproof just part of the floor you would be wasting your money.
How thick is floor Soundproofing?

Floor soundproofing varies in thickness from 5mm to 28mm depending on the type and level of soundproofing required. However, our best-selling SoundDeck is just 37mm thick and performs exceptionally well against both airborne noise and impact noise.
Do you offer an installation service?

Please see our dedicated installation page for more details on different installation options.
Once installed, can I put any type of flooring down?

Yes, however, the best final floor finish for soundproofing is carpet. Our SoundDeck is unique in that no further hardboard layer is needed.
Thin hard floors such as laminate and vinyl can also be fitted on top of soundproofing, but some systems may need a 6mm hardboard first to provide a flat stable base. Our Reverso SoundMat is unique in that in the majority of cases no further hardboard layer is needed.
Engineered wood floors can also be fitted on top of soundproofing providing it is 18mm or thicker.
Bathroom, and kitchen tiles will normally need a flat stable base on top of the soundproofing, depending on which floor soundproofing system has been selected.
For specialist flooring (including certain LVT and Vinyl) a self levelling screed or overboard may be needed to meet the manufactures guidance. Please speak to the flooring manufacturer to check.
Solid and hard floor finishes will reduce the amount of impact noise reduction achieved by the base layer of soundproofing by up to 5dB.
